Interface

1 10/100/1000Mbps RJ45 WAN/LAN Port
3 10/100/1000Mbps RJ45 LAN Ports
1 RJ11 Port
2 USB 3.0 Port

Bouton

WPS Button, Reset Button, LED On/Off Button, Wireless On/Off Button, Power On/Off Button

Alimentation externe

12V/2.5A

Standards IEEE

IEEE 802.3, IEEE 802.3u, 802.3ab

Standards VDSL2

ITU-T G.993.2, Up to 17a profile (POTS)
ITU-T G.993.5 (G.vector)
ITU-T G.998.4 (G.INP）

Standards ADSL

Full-rate ANSI T1.413 Issue 2,
ITU-T G.992.1(G.DMT),
ITU-T G.992.2(G.Lite),
ITU-T G.994.1 (G.hs),
ITU-T G.995.1

Standards ADSL2

ITU-T G.992.3 (G.DMT.bis),
ITU-T G.992.4 (G.lite.bis)

Standards ADSL2+

ITU-T G.992.5

Dimensions (LxPxH)

216 x 164 x 36.8mm

Type d'antenne

3 external detachable dual band antennas (RP-SMA)

Gain de l'antenne

3 x 2dBi for 2.4GHz and 3 x 3dBi for 5GHz

Standards Wi-Fi

IEEE 802.11a/n/ac 5GHz,
IEEE 802.11b/g/n 2.4GHz

Vitesse Wi-Fi

1300Mbps at 5GHz, 600Mbps at 2.4GHz

Fréquence

2.4GHz and 5GHz (Supports DFS)

Puissance de transmission

<20dBm(EIRP)

Fonctions Wi-Fi

Enable/Disable Wireless Radio, WDS Bridge, WMM, Wireless Statistics
Support 2.4GHz and 5GHz Wireless Schedule

Sécurité Wi-Fi

64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA-PSK2
encryptions, Wireless MAC Filtering

Qualité de Service QoS

ATM QoS, Traf­c Control(IP QoS)

Sécurité

NAT Firewall, Access Control, MAC / IP / URL Filtering, Denial of
Service (DoS), SYN Flooding, Ping of Death, IP and MAC Address Binding

Modes opératoires

VDSL/ADSL Modem Router, Wireless Router, 3G/4G Router

Administration

Web Based Con­guration(HTTP), Remote management,
command Line Interface, SSL for TR-069, SNMP v1/2c, Web Based
Firmware Upgrade, Diagnostic Tools, Free Online Firmware Update

DHCP

Server, Client, DHCP Client List, Address Reservation, DHCP Relay

Redirection de port

Virtual Server, Port Triggering, DMZ, ALG, UPnP

DNS dynamique

DynDns, NO-IP

VPN Pass-Through (ne bloque pas un lien VPN)

PPTP, L2TP, IPSec Passthrough

Protocoles

Supports IPv4 and IPv6

Protocoles ATM/PPP

ATM Forum UNI3.1/4.0, PPP over ATM (RFC 2364),
PPP over Ethernet (RFC2516), IPoA (RFC1577/2225), MER\IPoE (RFC 1483
Routed), Bridge (RFC1483 Bridge), PVC – Up to 8 PVCs

Fonctions avancées

Parental Control, Network Address Translation(NAT),
Port Mapping(Grouping), Static Routing, RIP v1/v2(optional), DNS Relay,
DDNS, IGMP V1/V2/V3

Partage USB

Support Samba(Storage)/FTP Server/Media Server/Printer Server, 3G/4G Modem

Réseau invité

2.4GHz guest network x 1, 5GHz guest network x 1

VPN IPsec

Supports up to 10 IPSec VPN tunnels

Certification

CE, RCM, RoHS

Contenu de l'emballage

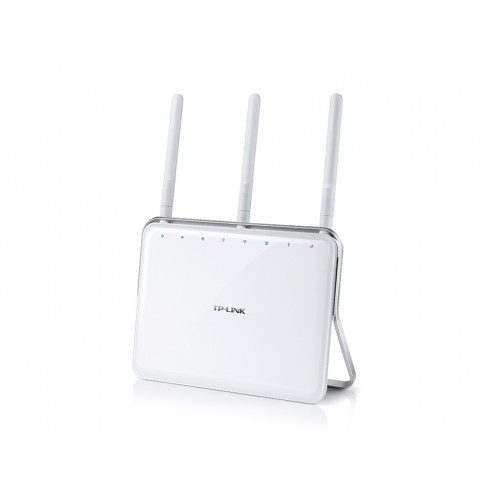

AC1900 Wireless Dual Band Gigabit VDSL/ADSL Modem Router Archer VR900
External Splitter
RJ11 DSL Cable
RJ45 Ethernet Cable
Power Adapter
Quick Installation Guide

Système requis

Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7, 8, 8.1, 10, MAC OS,
NetWare, UNIX or Linux
Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0, or other
Java-enabled browser
Cable or DSL Modem
Subscription with an Internet Service Provider (for Internet access)

Environnement

Operating Temperature: 0℃~40℃ (32℉ ~104℉)
Storage Temperature: -40℃~70℃ (-40℉ ~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
