Standards et Protocoles

IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab , IEEE 802.3x

Interface

16 10/100/1000Mbps RJ45 Ports (Auto Negotiation/Auto MDI/MDIX)

Interface réseau

10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
100BASE-TX/1000BASE-T: UTP category 5, 5e or above cable (maximum 100m)

Nombre de ventilateurs

Fanless

Alimentation

100-240VAC, 50/60Hz

Consommation

Maximum: 9.26W (220V/50Hz)

Dimensions (LxPxH)

17.3*7.1*1.7 in. (440*180*44 mm)

Capacité de commutation

32Gbps

Taux de transfert de paquets

23.8Mpps

Tableau d'adresses MAC

8K

Trame Jumbo

10KB

QoS

802.1p/DSCP QoS*

*Only for V12 and later version

Technologie verte

Yes

Méthode de transfert

Store-and-Forward

Certification

FCC, CE, RoHS

Contenu de l'emballage

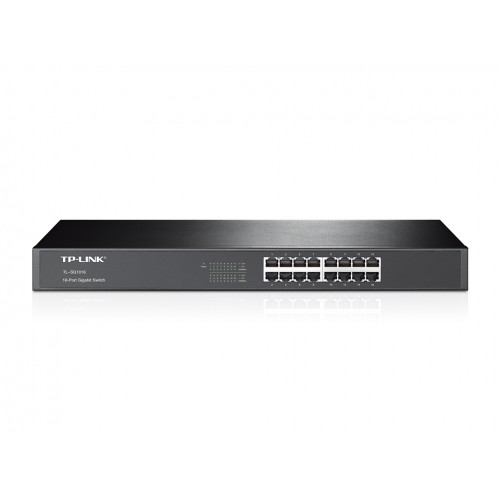

16-Port Gigabit Rackmount Switch
Power Cord
Installation Guide
Rackmount Kits
Rubber Feet

Environnement

Operating Temperature: 0℃~40℃ (32℉~104℉);
Storage Temperature: -40℃~70℃ (-40℉~158℉);
Operating Humidity: 10%~90% non-condensing;
Storage Humidity: 5%~90% non-condensing
