Standards et Protocoles

IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1q, IEEE 802.1p

Interface

5 10/100/1000Mbps RJ45 Ports
AUTO Negotiation/AUTO MDI/MDIX

Interface réseau

10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
100BASE-TX: UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)

Nombre de ventilateurs

Fanless

Alimentation

100-240VAC, 50/60Hz

Consommation

Maximum: 2.49W (220V/50Hz)

Dimensions (LxPxH)

3.9 * 3.9 *1.0 in. (100 * 98 *25 mm)

Taux de transfert de paquets

7.4Mpps

Tableau d'adresses MAC

2K

Mémoire tampon des paquets

1.5Mb

Trame Jumbo

15KB

Qualité de Service QoS

Support Port-based/802.1p/DSCP priority ²
Support 4 priority queues
Rate Limit
Storm Control

Fonctions N2

IGMP Snooping V1/V2/V3
Link Aggregation
Port Mirroring
Cable Diagnostics
Loop Prevention

VLAN

Supports up to 32 VLANs simultaneously (out of 4K VLAN IDs)
MTU/Port/Tag VLAN

Méthode de transmission

Store-And-Forward

Certification

FCC, CE, RoHS

Contenu de l'emballage

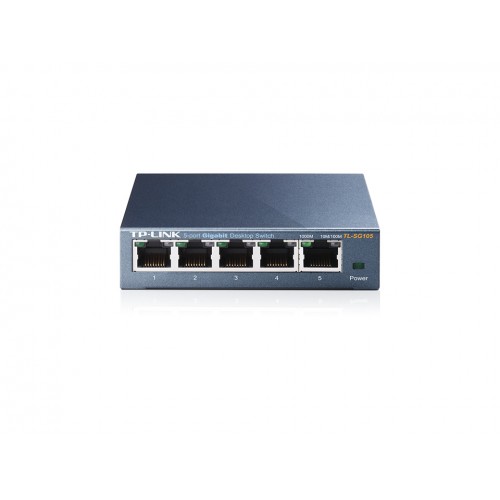

TL-SG105E
Power Cord
Installation Guide
Resource CD
Rubber Feet

Système requis

Microsoft® Windows® for running Utility

Environnement

Operating Temperature: 0℃~40℃ (32℉~104℉)
Storage Temperature: -40℃~70℃ (-40℉~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
