Description:
- Connexions Ethernet Gigabit pour des transferts de données rapides
- La fonction VLAN 802.1Q, la sécurité par port et le Storm control vous offrent des stratégies de sécurité efficaces.
- Les fonctions QoS L2/L3/L4 et IGMP snooping permettent d'optimiser les applications voix et vidéo.
- Les modes d'administration WEB/CLI, SNMP et RMON offrent une multitude de fonctionnalités de gestion.
| SPÉCIFICATIONS MATÉRIELLES | |
|---|---|
| Standards et Protocoles |
IEEE 802.3i,IEEE 802.3u,IEEE 802.3ab, IEEE802.3z,IEEE 802.3x,IEEE 802.1d, IEEE 802.1s,IEEE 802.1w,IEEE 802.1q,IEEE 802.1p |
| Interface |
48 10/100/1000Mbps RJ45 Ports (Auto Negotiation/Auto MDI/MDIX) 4 Gigabit SFP Slots |
| Interface réseau |
10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) 100BASE-TX/1000Base-T: UTP category 5, 5e or above cable (maximum 100m) 1000BASE-X: MMF, SMF |
| Nombre de ventilateurs | Fanless |
| Alimentation | 100~240VAC, 50/60Hz |
| Consommation | Maximum: 32.8W (220V/50Hz) |
| Dimensions (LxPxH) | 17.3*8.7*1.7 in.(440*220*44 mm) |
| PERFORMANCES | |
|---|---|
| Bande passante/ backplane | 104Gbps |
| Tableau d'adresses MAC | 16k |
| Mémoire tampon des paquets | 77.4Mpps |
| Trame Jumbo | 9216 Bytes |
| CARACTÉRISTIQUES LOGICIELLES | |
|---|---|
| Qualité de Service QoS |
Support 802.1p CoS/DSCP priority Support 8 priority queues Queue scheduling: SP, WRR, SP+WRR Port/Flow- based Rate Limiting IPv6 QoS* Voice VLAN |
| Fonctions N2 et N2+ |
Static Routing DHCP Relay* IGMP Snooping V1/V2/V3 802.3ad LACP (Up to 14 aggregation groups, containing 8 ports per group) Spanning Tree STP/RSTP/MSTP BPDU Filtering/Guard TC/Root Protect Loopback detection 802.3x Flow Control LLDP, LLDP-MED* |
| VLAN |
Supports up to 4K VLANs simultaneously (out of 4K VLAN IDs) MAC/Protocol-based VLAN |
| Liste de contrôle d'accès |
L2～L4 package filtering based on source and destination MAC address, IP address, TCP/UDP ports IPv6 ACL* |
| Sécurité |
SSH v1/v2 SSL v3/TLS v1 AAA* Port Security DHCP Snooping IP-MAC-Port Binding ARP Inspection 802.1x and Radius Authentication SSH v1/v2 SSL v3/TLSv1 Broadcast/Multicast/Unknown-unicast Storm Control Dos Defend |
| IPv6 |
Dual IPv4/IPv6 stack Multicast Listener Discovery (MLD) Snooping IPv6 neighbor discovery (ND) Path maximum transmission unit (MTU) discovery Internet Control Message Protocol (ICMP) version 6 TCPv6/UDPv6 |
| Applications IPv6 |
DHCPv6 Client Ping6 Tracert6 Telnet (v6) IPv6 SNMP IPv6 SSH IPv6 SSL Http/Https IPv6 TFTP |
| Administration |
Web-based GUI and CLI management SNMP v1/v2c/v3,compatible with public MIBs and TP-LINK private MIBs RMON (1, 2, 3, 9 groups) CPU Monitoring Port Mirroring Firmware Upgrade: TFTP & Web System Diagnose: VCT SYSLOG & Public MIBS Dual Image *These features will be supported in a future firmware release. |
| AUTRES | |
|---|---|
| Certification | CE, FCC, RoHS |
| Contenu de l'emballage |
T1600G-52TS Power Cord; Installation Guide; Resource CD; Rackmount Kit; Rubber Feet |
| Système requis | Microsoft® Windows® XP, Vista™ or Windows 7, Windows 8, MAC® OS, NetWare®, UNIX® or Linux. |
| Environnement |
Operating Temperature: 0℃~40℃ (32℉~104℉); Storage Temperature: -40℃~70℃ (-40℉~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |

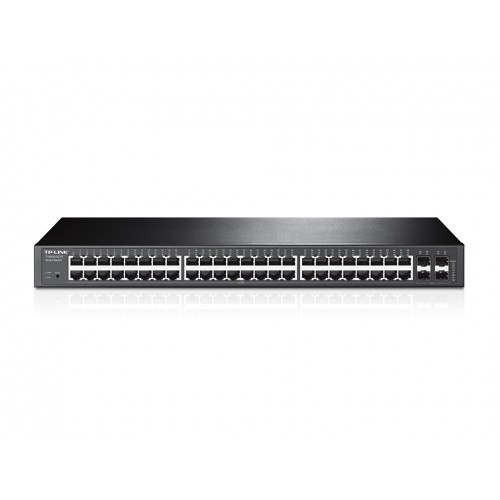

TP-LINK T1600G-52TS (TL-SG2452) Smart Switch JetStream administrable 48 ports Gigabit plus 4 emplacements SFP
- Modèle : T1600G-52TS (TL-SG2452)
- Disponibilité : Pré-Commander
-
6 240,00MAD
- H.T : 5 200,00MAD
