Description:
- Supporte 24 ports 802.3at/af compatible PoE pour une puissance totale de 320W
- Le groupage IP-MAC-Port-VID, l’ACL, la sécurité par port, la défense DoS, le Storm control, le snooping DHCP, l’authentification 802.1X et Radius vous offrent des stratégies de sécurité efficaces.
- Les fonctions QoS L2/L3/L4 et snooping IGMP permettent d'optimiser les applications voix et vidéo.
- Les modes d'administration WEB/CLI, SNMP et RMON offrent une multitude de fonctionnalités de gestion.
| SPÉCIFICATIONS MATÉRIELLES | |
|---|---|
| Standards et Protocoles |
IEEE 802.3i,IEEE 802.3u,IEEE 802.3ab,IEEE802.3z,IEEE 802.3ad, IEEE 802.3x,IEEE 802.1d,IEEE 802.1s,IEEE 802.1w,IEEE 802.1q, IEEE 802.1x,IEEE 802.1p,IEEE 802.3at,IEEE 802.3af |
| Interface |
24 10/100/1000Mbps RJ45 Ports (Auto Negotiation/Auto MDI/MDIX) 4 Combo 100/1000Mbps SFP Slots 1 Console Port |
| Interface réseau |
10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) 100BASE-TX/1000Base-T: UTP category 5, 5e or above cable (maximum 100m) 100BASE-FX:MMF,SMF 1000BASE-X: MMF, SMF |
| Nombre de ventilateurs | 3 |
| Alimentation | 100~240VAC, 50/60Hz |
| Consommation |
Maximum (PoE on): 358.2W (220V/50Hz) Maximum (PoE off): 38.2W (220V/50Hz) |
| Ports PoE+ |
Standard: 802.3at/af compliant PoE+ Ports: 24 Ports Power Supply: 320W |
| Dimensions (LxPxH) | 17.32*13*1.73 in.(440*330*44 mm) |
| PERFORMANCES | |
|---|---|
| Bande passante/ backplane | 48Gbps |
| Taux de transfert de paquets | 35.7Mpps |
| Tableau d'adresses MAC | 8k |
| Trame Jumbo | 10240 Bytes |
| CARACTÉRISTIQUES LOGICIELLES | |
|---|---|
| Qualité de Service QoS |
Support 802.1p CoS/DSCP priority Support 4 priority queues Queue scheduling: SP, WRR, SP+WRR Port/Flow- based Rate Limiting Voice VLAN |
| Fonctions N2 |
IGMP Snooping V1/V2/V3 802.3ad LACP (Up to 8 aggregation groups, containing 8 ports per group) Spanning Tree STP/RSTP/MSTP LLDP, LLDP-Med BPDU Filtering/Guard TC/Root Protect Loop back detection 802.3x Flow Control |
| VLAN |
Supports up to 4K VLANs simultaneously (out of 4K VLAN IDs) Port/ MAC/Protocol-based VLAN GARP/GVRP |
| Liste de contrôle d'accès |
L2～L4 package filtering based on source and destination MAC address, IP address, TCP/UDP ports, 802.1p, DSCP, protocol and VLAN ID Time Range Based |
| Sécurité |
IP-MAC-Port-VID Binding IEEE 802.1X Port/MAC Based authentication, Radius, Guest VLAN DoS Defence Dynamic ARP inspection (DAI) SSH v1/v2 SSL v2/v3/TLSv1 Port Security Broadcast/Multicast/Unknown-unicast Storm Control |
| IPv6 |
Dual IPv4/IPv6 stack Multicast Listener Discovery (MLD) Snooping IPv6 neighbor discovery (ND) Path maximum transmission unit (MTU) discovery Internet Control Message Protocol (ICMP) version 6 TCPv6/UDPv6 |
| Applications IPv6 |
DHCPv6 Client Ping6 Tracert6 Telnet(v6) IPv6 SNMP IPv6 SSH IPv6 SSL Http/Https IPv6 TFTP |
| Administration |
Web-based GUI and CLI management SNMP v1/v2c/v3,compatible with public MIBs and TP-LINK private MIBs RMON (1, 2, 3, 9 groups) DHCP/BOOTP Client,DHCP Snooping,DHCP Option82 CPU Monitoring Port Mirroring Time Setting: SNTP Integrated NDP/NTDP feature Firmware Upgrade: TFTP & Web System Diagnose: VCT SYSLOG & Public MIBS |
| AUTRES | |
|---|---|
| Certification | CE, FCC, RoHS |
| Contenu de l'emballage |
Switch Power Cord Quick Installation Guide Resource CD Rackmount Kit Rubber Feet |
| Système requis | Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7, MAC® OS, NetWare®, UNIX® or Linux. |
| Environnement |
Operating Temperature: 0℃~40℃ (32℉~104℉); Storage Temperature: -40℃~70℃ (-40℉~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |

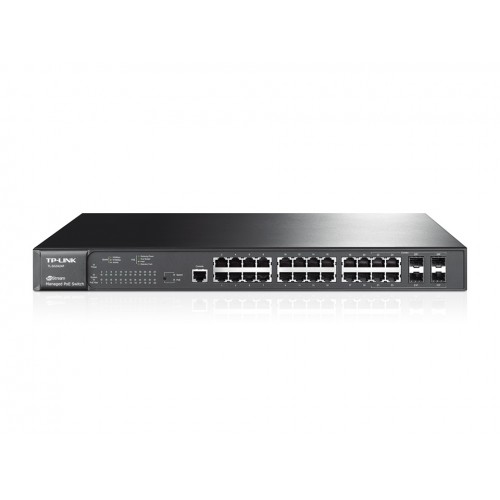

TP-LINK TL-SG3424P Switch JetStream™ administrable niveau 2 24 ports Gigabit PoE avec 4 emplacements combinés SFP
- Modèle : TL-SG3424P
- Disponibilité : Pré-Commander
-
6 780,00MAD
- H.T : 5 650,00MAD
