Caractéristique :
|
IPC222ER-F36 |
|
|
Camera |
|
|
Sensor |
1/2.8", 2 Megapixel, progressive scan CMOS |
|
Lens |
3.6mm@F1.8; Angle of View (H): 85° |
|
Shutter |
Auto/Manual, 1/6~1/8000 s |
|
Min. Illumination |
Colour: 0.06 Lux (F1.8, AGC ON) 0 Lux with IR |
|
IR Range |
Up to 30m (98ft) IR range |
|
Day/Night |
IR-cut filter with auto switch (ICR) |
|
S/N |
>52dB |
|
WDR |
Digital |
|
Image Rotation |
Supported |
|
Video |
|
|
Max. Resolution |
1920 × 1080 |
|
Video Compression |
H.264,MJPEG |
|
Frame Rate |
1080P (1920*1080): Max. 30 fps; 720P (1280*720): Max. 30 fps; D1 (720*576): Max. 25 fps |
|
Video Streaming |
Triple |
|
9:16 Corridor Mode |
Supported |
|
ROI(Region of Interest) |
Supported |
|
OSD |
Up to 8 OSDs |
|
Privacy Mask |
Up to 4 areas |
|
Audio |
|
|
Audio Compression |
G.711 |
|
Two-way audio |
Supported |
|
Network |
|
|
Protocols |
L2TP, IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x |
|
Compatible Integration |
ONVIF, API |
|
Interface |
|
|
Audio I/O |
Audio cable |
|
Input: impedance 35 kΩ; amplitude 2 V [p-p] |
|
|
Output: impedance 600 Ω; amplitude 2 V [p-p] |
|
|
Alarm I/O |
1 / 1 |
|
Network |
10M/100M Base-TX Ethernet |
|
General |
|
|
Power |
12 V DC or PoE (IEEE802.3 af) |
|
Power consumption: 3.5 W (7.5W with IR on) |
|
|
Dimensions (L × W × H) |
187.8 ×76 ×44 mm (7.4” × 3.0” × 1.7”) |
|
Weight |
0.58 kg (1.28 lb) |
|
Working Environment |
-35°C ~ +60°C (-31°F ~ 140°F), Humidity ≤ 95% RH(non-condensing) |
|
Ingress Protection |
IP66 |
|
IPC222ER-F36 |
|
|
Camera |
|
|
Sensor |
1/2.8", 2 Megapixel, progressive scan CMOS |
|
Lens |
3.6mm@F1.8; Angle of View (H): 85° |
|
Shutter |
Auto/Manual, 1/6~1/8000 s |
|
Min. Illumination |
Colour: 0.06 Lux (F1.8, AGC ON) 0 Lux with IR |
|
IR Range |
Up to 30m (98ft) IR range |
|
Day/Night |
IR-cut filter with auto switch (ICR) |
|
S/N |
>52dB |
|
WDR |
Digital |
|
Image Rotation |
Supported |
|
Video |
|
|
Max. Resolution |
1920 × 1080 |
|
Video Compression |
H.264,MJPEG |
|
Frame Rate |
1080P (1920*1080): Max. 30 fps; 720P (1280*720): Max. 30 fps; D1 (720*576): Max. 25 fps |
|
Video Streaming |
Triple |
|
9:16 Corridor Mode |
Supported |
|
ROI(Region of Interest) |
Supported |
|
OSD |
Up to 8 OSDs |
|
Privacy Mask |
Up to 4 areas |
|
Audio |
|
|
Audio Compression |
G.711 |
|
Two-way audio |
Supported |
|
Network |
|
|
Protocols |
L2TP, IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x |
|
Compatible Integration |
ONVIF, API |
|
Interface |
|
|
Audio I/O |
Audio cable |
|
Input: impedance 35 kΩ; amplitude 2 V [p-p] |
|
|
Output: impedance 600 Ω; amplitude 2 V [p-p] |
|
|
Alarm I/O |
1 / 1 |
|
Network |
10M/100M Base-TX Ethernet |
|
General |
|
|
Power |
12 V DC or PoE (IEEE802.3 af) |
|
Power consumption: 3.5 W (7.5W with IR on) |
|
|
Dimensions (L × W × H) |
187.8 ×76 ×44 mm (7.4” × 3.0” × 1.7”) |
|
Weight |
0.58 kg (1.28 lb) |
|
Working Environment |
-35°C ~ +60°C (-31°F ~ 140°F), Humidity ≤ 95% RH(non-condensing) |
|
Ingress Protection |
IP66 |

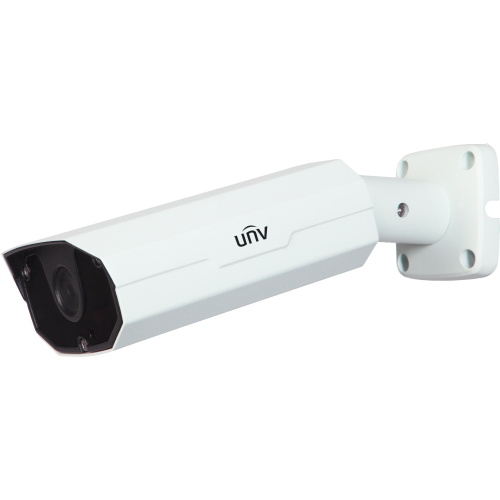

UNV IPC222ER-F36 Camera 2MP Network IR Bullet
- Modèle : IPC222ER-F36
- Disponibilité : Pré-Commander
-
2 127,60MAD
- H.T : 1 773,00MAD
