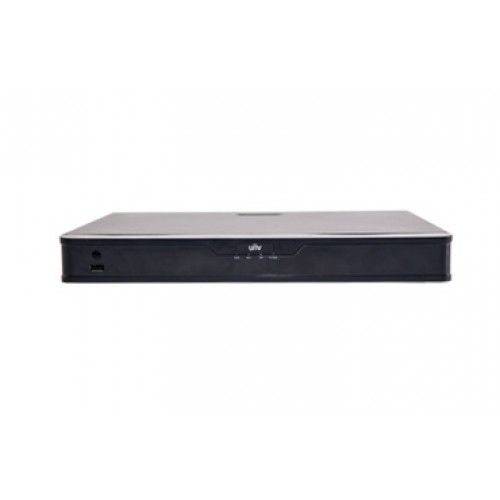

NVR302-08E-P8

NVR302-16E-P8

NVR302-16E-P16

Video/Audio Input

IP Video Input

8-ch

16-ch

Two-way Audio Input

1-ch, RCA

Network

Incoming Bandwidth

80Mbps

160Mbps

Outgoing Bandwidth

160Mbps

320Mbps

Remote Users

128

Video/Audio Output

HDMI/VGA Output

VGA:

1920x1080p /60Hz, 1920x1080p /50Hz, 1600x1200 /60Hz, 1280x1024 /60Hz, 1280x720 /60Hz, 1024x768 /60Hz

HDMI:

4K (3840x2160) /60Hz, 4K (3840x2160) /30Hz, 1920x1080p /60Hz, 1920x1080p /50Hz, 1600x1200 /60Hz, 1280x1024 /60Hz, 1280x720 /60Hz, 1024x768 /60Hz

Recording Resolution

12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF

Audio Output

1-ch, RCA

Synchronous Playback

8-ch

16-ch

Decoding

Compression

H.265/H.264

Live view/

Playback

12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF

Capability

4 x 12MP@20, 4 x 4K@30, 8 x 4MP@30, 16 x 1080P@30

Hard Disk

SATA

2 SATA interfaces

Capacity

up to 8TB for each disk

External Interface

Network Interface

1 RJ-45 10M/100M/1000M self-adaptive Ethernet Interface

USB Interface

Front panel: 1 x USB2.0，Rear panel: 1 x USB3.0

Alarm In

4-ch

Alarm Out

1-ch

PoE

Interface

8 independent 100 Mbps PoE network interfaces

16 independent 100 Mbps PoE network interfaces

Max Power

Max 30W for single port

Max 130W in total ( 16.25W for each )

Max 30W for single port

Max 240W in total ( 15W for each )

Supported Standard

IEEE 802.3af/at

General

Power Supply

100 ~ 240 VAC

Consumption

( without HDD )

≤ 20 W

Working Temperature

-10°C ~ + 55°C ( +14°F ~ +131°F )

Working Humidity

10% ~ 90%

Dimensions

380 mm × 315mm × 46 mm

Weight ( without HDD )

≤2.42kg（5.34lb）

≤2.48kg（5.47lb
